Point Cloud Create Surface

Icon:
Ribbon: Roads tab > Select Panel > Model Viewer dropdown > Point Cloud Surface
            General tab > 3D View panel > Model Viewer dropdown > Point Cloud Surface
Model Viewer Ribbon: Model Viewer > Point Clouds Tab > Point Cloud Panel > Create Surface

---

Introduction



Once a Point Cloud has been imported into Model Viewer, users can generate a Civil Site Design Surface using this data. A Civil Site Design surface can consist of up to 2 million points, so if you are working with a very large Point Cloud than it is recommended that you filter the data prior to creation of the TIN surface.

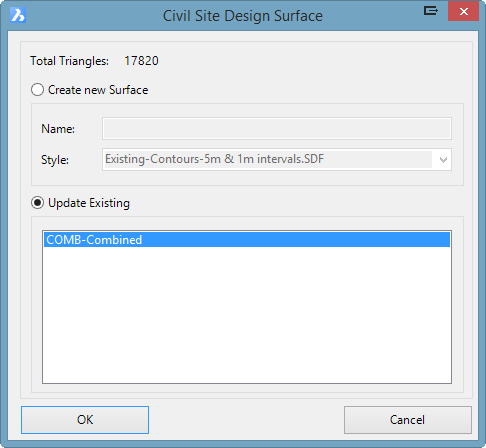

On selecting the Create Surface command, a dialog box will display. This dialog box allows the user to specify whether a new surface will be created or an existing surface will be updated.



Ribbon Tab and Navigation

This command forms part of the following tab:

Information on navigation in the Model Viewer 3D environment is available when reviewing the Model Viewer command help.
