Delete Road Object

Delete Road Object

Icon:
Menu: Roads > Edit > Delete Road Object
Ribbon: Roads Tab > Edit Panel > Delete Road Object

Introduction

During the course of a design, the Designer may wish to delete/remove particular road objects.

Options are available to delete:

Roads

Strings/Profiles

Kerb Returns

Cul-de-sacs

Knuckles

Roundabouts

Details

This command enables the Designer to selectively delete alignments and/or corridors from the Civil 3D drawing.

Only corridors created from alignments defined with r- or k- in the prefix of the alignment description can be deleted with this command. Other corridors can be deleted with the normal Civil 3D commands.

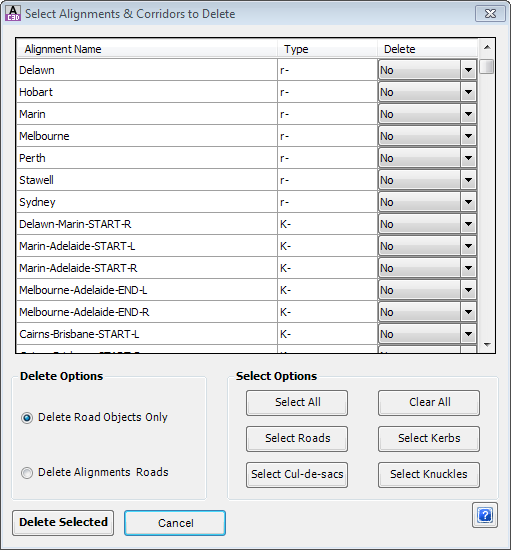

Upon selecting the command the following form is displayed:

Table Lists all the alignments/corridors and whether or not to delete them

Alignment Listing of Road Objects available for deletion

Type Lists the type of Road object by alignment description

Delete Select Yes/No to delete the Road Object or Alignment and Road Object. Depends on selection under Delete Options.

Delete Options Determines what is deleted upon execution of the command

Delete Road Objects Only Tick this on to delete just the Road Objects selected for deletion

Delete Alignments and Roads Tick this on to delete both the Road Objects and Alignments selected for deletion (yes) in the list

Select Options Click a button to highlight a collection of a particular road object type for deletion

Select All Select all alignments in the list for deletion

Clear All Set the Delete field for all the alignments in the list to No

Select Roads Highlight all Roads in the list for deletion

Select Kerbs Highlight all the Kerbs in the list for deletion

Select Cul-de-sacs Highlight all the cul-de-sacs in the list for deletion

Select Knuckles Highlight all the knuckles in the list for deletion

Delete Selected Delete the Road Objects, or the Alignment and Road Objects, for Alignments in the list with Yes in the column for Delete

Cancel Exit without deleting any Alignments or Road Objects

Selected Road Objects (or Alignments and Road Objects) are deleted from Civil Site Design (for the Road Objects) and Civil 3D (for the Alignments).
