Code Report

Icon:

---

Introduction

This command scans all points and Survey Strings in the drawing and allows the user to quickly identfiy (and resolve) any points picked up in the field and given Code/s that don't match to the Point Code Set, Survey String Set Table, or (for Civil 3D users) any Civil 3D Description Key Set.

Points with Codes that don't have a match in either the Point Code Set or Survey String Set Table are deemed 'Unclassed' Codes.  These will be highlighted in the list with a blue background.

Unclassed point Codes can be added to the Point Code Set from this form.

Details

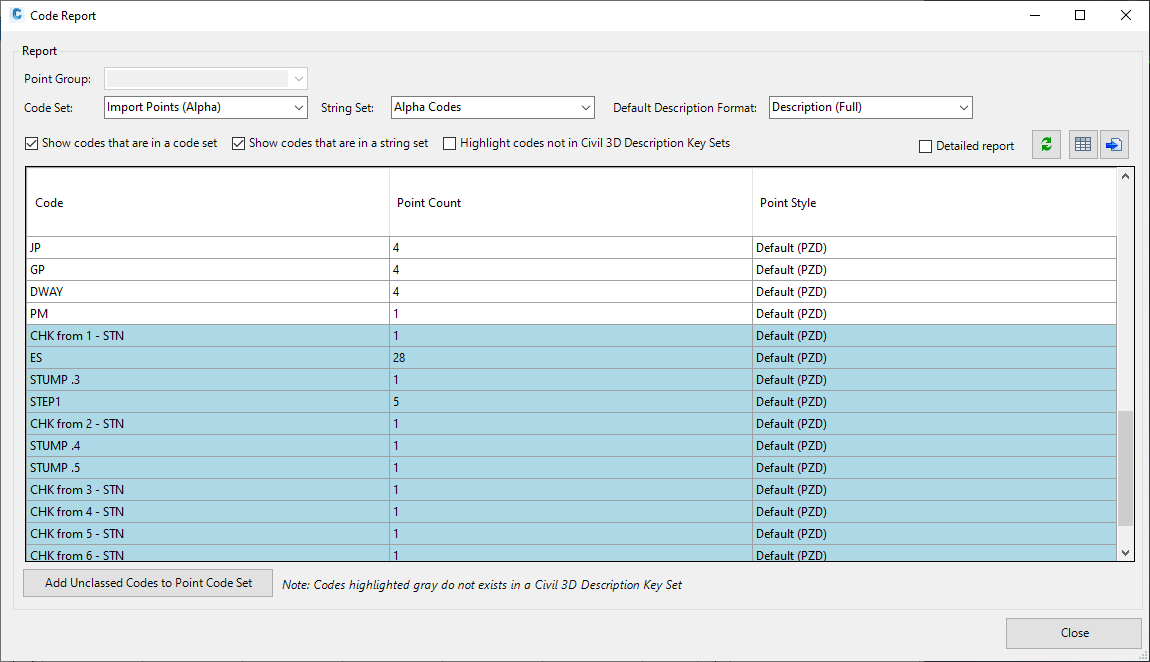

Upon selecting the command the following form is displayed:

Point Group	Select a Point Group.  All points in the selected Point Group will be checked and listed (as required). Note: for Civil 3D users, this will be greyed out.
Code Set	Pick a Point Code Set to check for unclassed points
String Set	Pick a Survey String Set Table to check for unclassed points
Default Description Format	Not used
Show codes that are in a code set	If ticked on, points in the drawing with codes matching codes in the selected Code Set will be displayed.
Show codes that are in a string set	If ticked on, points in the drawing with codes matching codes in the selected String Set will be displayed.
Highlight coes not in Civil 3D Description Key Sets	If ticked on, any points with Codes that are not listed in any Civil 3D Description Key Sets will be highlighted with a grey background. Note: this option will only be enabled in Civil 3D
Highlight coes not in Civil 3D Description Key Sets	If ticked on, and points with Codes that are not listed in any Civil 3D Description Key Sets will be highlighted with a grey background. Note: this option will only be enabled in Civil 3D
Detailed Report	Tick on to expand the detail displayed in the Code list on the form.  The Detailed Report contains more information for each Code (expands on the number of points to also include the number of Survey Strings and Survey String statistics)
Refresh	Refresh the list of Codes
Export to Table	Click to create a Table in the drawing.  At the command prompt, click in the drawing, then click where the table (top left corner) should be inserted.
Export to File	Creates a .csv file and opens the file for viewing.  User will be prompted to pick a save location and filename.
[List of Codes]	Lists the Codes, highlighting those that are Unclassed with a coloured background
Code	Displays Codes.  Depending on the selection options, all Codes used in the drawing may be displayed or only the Unclassed Codes.
Point Count	Lists the number of points in the drawing using the Code
Point Style	Describes the Point Style used for the Code (as per the Point Code Set)
[Survey String Information - Various]	If Detailed report is ticked on, additonal columns detailing the Survey String information will also be displayed.

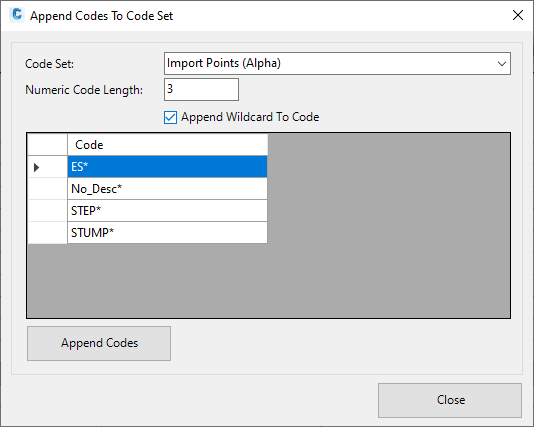

Add Unclassed Codes to Point Code Set	Click to add all Unclassed Codes to the Point Code Set.  The following form will display:   Code Set Pick the Point Code Set to add the Unclassed points to Numeric Code Length If using numeric codes, set the number of digits that describe the Code. Append Wildcard to Code Adds an asterix (*) to the Unclassed Codes to be added to the selected Point Code Set.  [List of Codes] Lists the Unclassed Codes to be added to teh selected Point Code Set Append Codes A message will display to confirm adding all the Unclassed Points to the Point Code Set.  Proceed and add the Codes or cancel to exit back to this form Close Close the form
Close	Close the form.
