Station on Poly

Icon:
Menu:	Alignments > Labels > Station on Poly Pipes > Labels > Station on Poly General > Labels > Station on Poly
Ribbon:	Alignments Tab > Utilities Panel > Station on Poly General Tab > Labels Panel > Station on Poly

Introduction

The Stations on Poly tool enables the user to create Labels diplaying alignment information on polyline vertices or picked points on a polyline. Each Label is stored in a list and can be individually styled according to user requirements.

This tool is very useful if the user requires stations at lot frontages. The user can either pick individual points or allow the tool create multiple labels at maximum intervals.

The user can create a Label Set which will contain custom Label Styles and choose polyline objects.

In the example below, the user can create a Label Set called  'Lot Stations', create/choose a Label Style which displays a marker/elevation at each point or vertex and if mulitple labels is select, choose a maximum multiple label distance.

The user can choose from Labeling single picked points along the polyline or multiple offset points along the polyline.

**WARNING** Please note that EXPLODING polylines that have Labels will result in the permanent deletion of the Labels. The Label items will still remain listed in the Label Listing table but cannot be retrieved.

Details

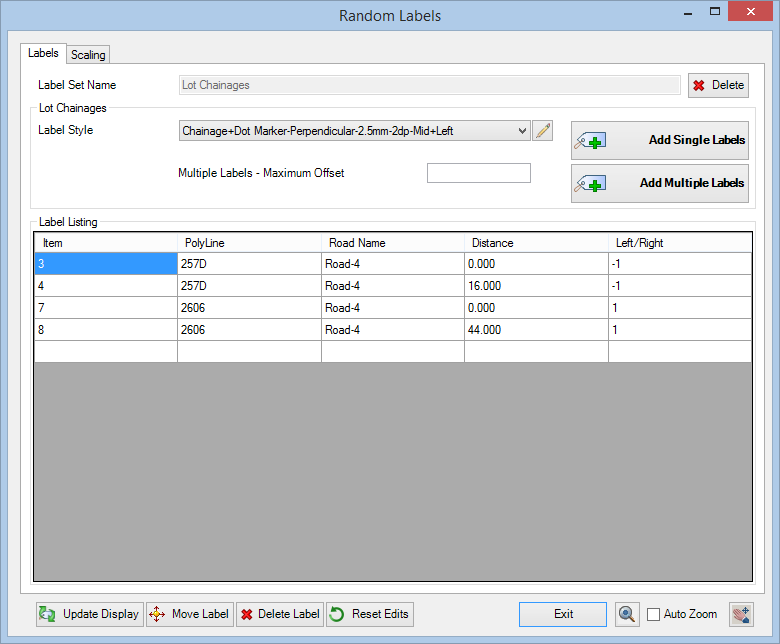

Upon selecting the command the following form is displayed:

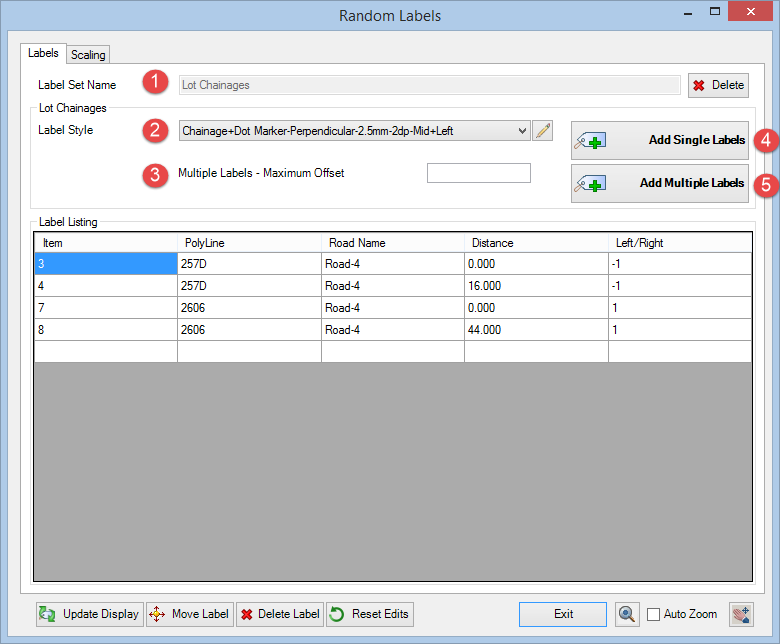

Label Set Name	Name of the currently selected label set (not editable).
	Delete the current Label Set Name with option to delete all associated label objects in drawing

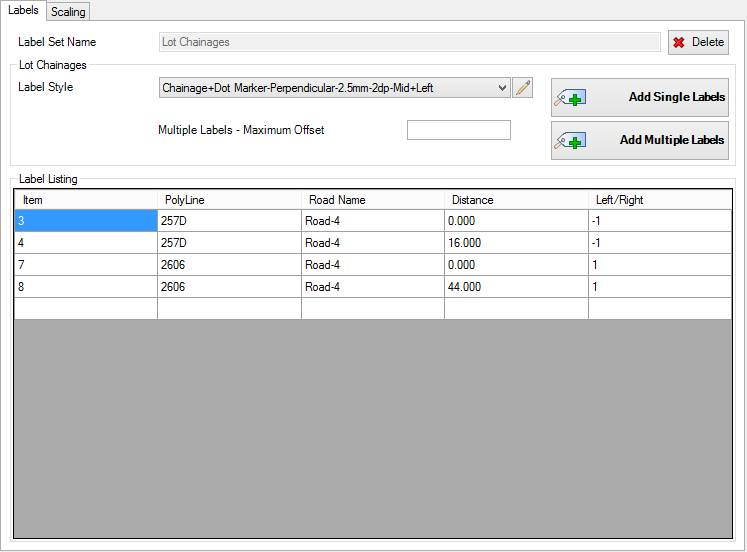

Labels Tab	This tab manages the parameters for the labels
	Polyline Labels Functionality to assign Label Styles and add labels to the drawing   Label Style Select a list and click OK to edit the label group.   Edit Label Style This opens the Label Styles command for Surface Labels  Multiple Labels - Maximum Offset Select the surface on which to apply the labels Add Single Label On selection, the user is prompted with the following:   Select a polyline on screen to label Pick the alignment to reference for stations Pick a point anywhere on the polyline for the Label displaying the reference station Add Multiple Labels On selection the user is prompted with the following:   Select a polyline on screen to label Pick the alignment to reference for stations Pick a point anywhere on the polyline for the Label displaying the reference station Label Listing Displays a list of all labels applied to the drawing using the current Label Set Name   Item Polyline Road Name Distance Left/Right Lists the label number (in order of creation in drawing) Lists the polyline entity name Lists the Road Name referenced for the station Lists distance of label from the start vertex of the polyline -1 = Label is the left side of the Alignment 0 =
Scaling Tab	This tab manages the scaling of the labels within the drawing
	Scale Option Pick the following options   Always use drawing scale The label sizes are defined by the user annotation scale set in the drawing (CANNOSCALE)      Keep first drawing scale The drawing scale at the time of the Labels creation will be permanently stored & used regardless of future drawing scale changes. User scale User can define the drawing scale of the labels using the box below   Scale (1:x) Select a list scale from the list or type a custom scale
Output / Editting	These functions enable the user to edit & refine the labels in the drawing
	Select to update the display of all labels in the drawing
	Select a label from the list to move within drawing. User will be prompted to pick a new label position on screen
	Select a single label from the list and delete from the drawing
	Select to reset grip editted labels to default positions. This will also restore any Labels that have been accidentally erased from the drawing.
	Ticking this box will zoom the screen to a selected label in the list
	Exit the Surface Labels command
