Excel Export

Icon:

---

Introduction

This command provides the ability to create multiple Excel spreadsheets (Workbooks), including control of the Sheets, and to include design data in select cells (set by start column and start row).

The setup can be run (by clicking Run Excel Export) to create, as well as update Excel Workbooks.  There is control to set the location of the data to be added (column and row) in the spreadsheet, providing capacity to customise the output to include custom information above and left of the data (suiting a proforma controllled layout).

An Export Process is created to contain the workbooks and sheets that can be included in an export.

If it is intended to use the export as an input to the design (via the Excel Link) command then certain columns of data may be required as a reference (or key) to relate back to the data in the design.  As an example, forming an Excel Link to control the crossfall and width of a Code would also require the corresponding Stations to be included, so the correct crossfall and width could be assigned at the right section in the design).

About Sheets and Workbooks

A Workbook is an Excel (.xlsx) file

A Sheet is a spreadsheet of input data that can be assigned for inclusion in a Workbook.

When constructing the Workbooks and Sheets, note that Sheets can be selected for edting independent of a Workbook.  Currently, sheets are automatically assigned to a single Workbook at the time of creation.  In the future, Sheets will be able to be assigned (added) to multiple Workbooks.

Details

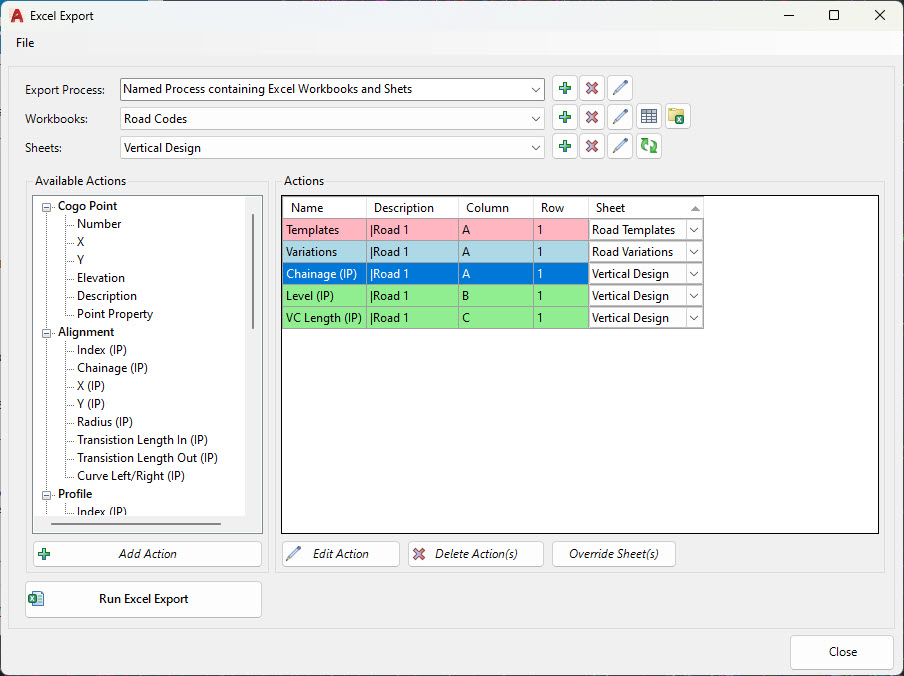

Upon selecting the command the following form is displayed:

File > New Process	Creates a new named Process.  The following form displays: Fill in the name and optionall a description.  OK to create or Cancel to exit without creating a new Process
File > Import Action List	Import a saved action list.  Pick the export file to include.  After picking a file the Add Actions form will display with only the following inputs enabled: - String/Alignment - Code - Surface Additional Actions will be added from the file being imported and assign the String/Alignment, Code and Surface selected.
File > Export Action List
	A Process is a group, describing a collection of Excel Workbooks (Excel .xlsx files) containing Excel Sheets.
Export Process picklist	Pick an Export Process to review

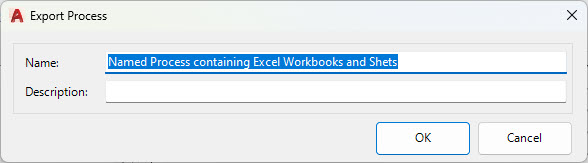

Add Process	Create a new Process.  The following form will display: Name Type a Name for the process Description Optional description OK Add/Update. Cancel Exit without change.
Delete Process	Deletes the current Process.  Excel files created are not deleted
Edit Process	Displays the Add Process form for editing the name and description of the Process.
	A Workbook is an Excel (.xlsx) file.  Multiple Workbooks can be added to a Process.
Workbook picklist	Pick a Workbook to edit or add Actions to

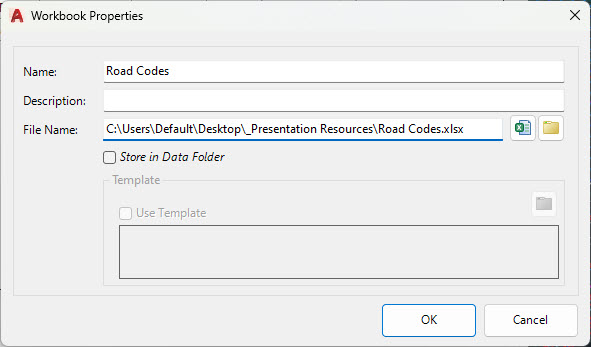

Add Workbook	Create a new Workbook or select an existing Workbook to append Sheets to and create Sheets from.  The following form will display: Name Type a Name for Excel File (workbook) Description Optional description File Name Populates the file name of the selected Workbook     Create New Workbook Select a folder location and filename to create a new Excel file (.xlsx)    Open Workbook Open and Excel file Store in Data Folder Saves a copy of the Excel file in the CSD Data folder for the project Template    Use Template  Tick on to use a Template   Open Open a template file OK Create the workbook Cancel Exit without change
Delete Workbook	Deletes the current Workbook.  Created Excel files are not deleted
Edit Process	Opens the Add Workbook form to select a different Workbook to include
Open Spreadsheet in Excel Editor	Opens the spreadsheet for editing with Excel Edit.
Open Excel Workbook	Opens the .xlsx file - if Excel (or other default application set to open .xlsx files) is installed on the computer, then it will open for editing in Excel (or equivalent)
	Sheets are part of an Excel Workbook (tabbed sheets in an Excel file).  These can be created and edited here, and will update the selected Workbook. By default, new Sheets are added to the currently selected Workbook.
Sheet picklist	Pick a Sheet to edit or add Actions to

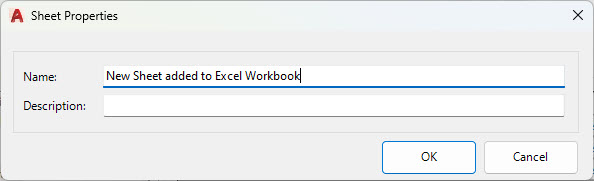

Add Sheet	Create a new Sheet or select an existing Sheet to append Actions to.  The following form will display: Name Type a Name for the Sheet. Description Optional description OK Create/Update the Sheet Cancel Exit without change
Delete Sheet	Deletes the current Sheet.  The Sheet in the Excel file will be deleted.
Edit Process	Opens the Add Sheet form to select a different Sheet to include
Sync Sheet	Updates the Sheet contents for any changes
Available Actions	Add Actions to the Actions list
Available Actions list	Lists all Design Data that can be included in an export process. Double click to add an action or select and click on the Add Action button.
GOGO Point	Lists all point properties that can be included in an export
Alignment	Lists all alignment properties that can be included in an export
Profile	Lists all the vertical grading informaiton that can be included in a report
Design Data	Lists all the inputs from the Design Data form that can be included in a report
Sectional	Lists all the sectional data that can be included in a report
Add Action	Select an Action type and click to add the Action. The Add Action form will display.
Actions list	Lists all actions to be applied to the Excel Sheets.  These will add columns and/or rows of design information in the selected Excel sheet/s.
Name	Lists the name given to the Action
Description	Lists the description given to the Action
Column	Displays the column that the data starts in.  This is an editable field.
Row	Displays the row that the data starts in.  This is an editable field
Sheet	Lists the Sheet that the data is added to.
Edit Action	Opens the Add Action form for the selected Action item.
Delete Action/s	Deletes the highlighted Action/s in the list.
Override Sheet(s)	Overrides the assigned Sheet for the highlighted Action/s in the list, using the currently selected Sheets.
Run Excel Export	Creates/Updates all the Excel Workbook/s and Sheet/s in the Actions list and opens each in Excel.  A message will display if the Excel Workbook/s are already open for editing.
Close	Close the form
