Subgrade Polylines

Icon:
Ribbon:	Roads Tab > Modelling Panel > Auto Model dropdown > Subgrade Polylines

---

Introduction

This command extracts 3D polylines for all subgrade layer codes that are included in a Subgrade Model.

A Subgrade Model needs to be selected and all included code feature lines will be exported into the drawing as 3D polylines.  Running the command again after updating the model will result in the previous lines being deleted and replaced.

The layer/s used to create the polylines come from the Subgrade Styles, accessed from the Subgrade Model Manager command.  A screenshot of this form, with the layer controls highlighted, is shown below:

Details

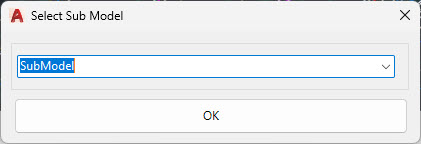

Upon selecting the command the following form is displayed:

Subgrade Model picklist	Select a subgrade model to pushlish 3D polylines for
OK	Click to create 3D polylines in the drawing for the selected Subgrade Model.
