Shift Chainages

Icon:



---

Introduction

This command allows strings and models to have a chainage shift applied.

When alignment geometry changes, the chainages of the design may need to be shifted to match the new geometry.



Details

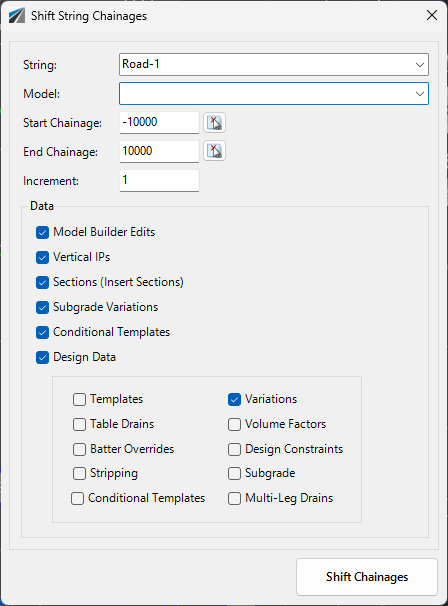

Upon selecting the command the following form is displayed:

String	Select the string to change.
Model	Select the model to change.
Stat Chainage	String start chainage range over which to apply the change.
End Chainage	String end chainage range over which to apply the change.
Increment	Amount to increment (change) the current chainages in the range specified.
Data	Select the data to adjust.
Model Builder Edits	Tick on to edit chainages in Model Builder for the selected Model
Vertical IP's	Tick on to to edit the VGE for the selected String
Sections (Insert Sections)	Inserted sections will also be edited
Subgrade Variations	Tick on to edit Subgrade Variations
Conditonal Templates	Tick on to edit Conditional Templates
Design Data	Tick on to apply edits to the Design Data form
Design Data	Users can select the design data input type to shift chainages for
Templates	Tick on to edit Template chainages
Variations	Tick on to edit Variation chainages
Table Drains	Tick on to edit Table Drain chainages
Volume Factors	Tick on to edit Volume Factor chainages
Batter Overrides	Tick on to edit Batter Override chainages
Design constraints	Tick on to edit Design Constraint chainages
Stripping	Tick on to edit Stripping chainages
Subgrade	Tick on to edit Subgrade chainages
Conditional Templates	Tick on to edit Conditional Template chainages
Multi Leg Drains	Tick on to edit Multi Leg Drain chainages
Shift Chainages	Click to apply the increment change to chainages for all selected.
