Feature Lines from Codes

Icon:

Introduction

This command creates Civil 3D Feature Lines for all Codes in a selected Civil Site Design Model.

Feature lines will be created for every code in the selected model.

Details

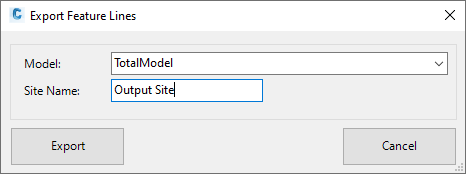

Upon selecting the command the following form is displayed:

Model Selection

Select the Model to export from the selection dropdown. The exported feature lines will come from the selected model.

Site Name: Enter the Site Name for the exported feature lines.

Export

Proceed with the feature line export and exit. Browse the Toolspace > Prospector tab and expand the Sites branch to see the list of new feature lines.

Cancel

Exit the form without deleting any data.


Model Selection	Select the Model to export from the selection dropdown. The exported feature lines will come from the selected model.
Site Name:	Enter the Site Name for the exported feature lines.
Export	Proceed with the feature line export and exit. Browse the Toolspace > Prospector tab and expand the Sites branch to see the list of new feature lines.
Cancel	Exit the form without deleting any data.
