Edit Codes

Icon:
Ribbon:	Survey Tab > Civil 3D COGO Point Tools Panel > Edit Codes Survey Tab > COGO Points Panel > Edit Point dropdown > Edit Codes

---

Introduction

This command enables rapid filtering of points into a list (by typed input or selection in the drawing).  Points can be selected in the list and users can replace formatted parts of the Point Description:

• First Code (eg: CB)

• First String number (eg: 2)

• First Parameter (eg: .F)

• Second Code

• Second String Number

• Second Parameter

• Third Code

• Third String Number

• Third Parameter

• Fourth Code

• Fourth String Number

• Fourth Parameter

When a point is selected in the list, the point position can be zoomed to automatically in the drawing.

After making edits in the Edit Code form, they can be formally applied to the drawing by clicking on Compute.

At the bottom of the form users can see the next available (unused) Survey String (String) numberas well as the next available point number.  This can help select appropriate changes to apply.

Details

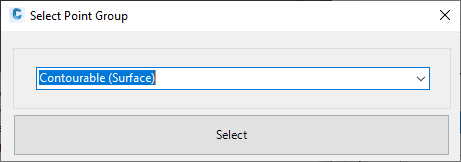

Upon selecting the user is prompted to select a Point Group to use.

Note: For Civil 3D users, the Civil 3D Point Groups are listed with "(Civil 3D)" appended to the name.

Point Group picklist	Select the Point Group to edit codes.
Select	Click to proceed to the Edit Codes form.

Edit Codes

Allows editing of multiple point codes, including search filtering.  The following form will display:   Point List Filter Filtering options for the point list    Filter by Enter a filter value    Filter category Picklist enabling bulk filtering based on First Code, First Parameter, Second Code, Second Parameter or All.    Pick from CAD  Graphically select points to include in the point list for editing Point Code list List of filtered point codes.  Highlighted points can be edited.  Field inputs are as follows    Number Point number    First Code First code of point    String Number Lists the string number for the point    Parameter Parameter applied to the first code    Second Code Second code of point    String Number Lists the string number for the point    Parameter Parameter applied to the second code    Third Code Third code of point    String Number Lists the string number for the point    Parameter Parameter applied to the Third code    Fourth Code Fourth code of point    String Number Lists the string number for the point    Parameter Parameter applied to the Fourth code Replace Options Input replacement to apply to the highlighted points    Replace Selected Input the value to replace for the selected points    Apply to picklist Picklist to select which part of the point Code to replace (first code, first parameter, second code, second parameter, etc)     Apply Once pressed, all highlighted points in the Point Code List will be edited and value replaced Compute Re-apply Survey Strings and update based on the applied changes in the Point Code List Refresh Redraws the output and updates the Point Code list Auto Zoom Tick on to auto zoom to highlighted points in the Point Code List
